Tsunoda Aerodynamics: Japan’s First Tange Aero Frame

Quick Answer: The Tsunoda Aerodynamics is an early-1980s aero road bike built by Tsunoda of Nagoya, Japan, the contract maker behind Lotus bicycles. It uses Tange’s oval-profile Aerodynamics chromoly tubing and Shimano’s 600 AX aero groupset. Tsunoda was the first builder to design a frame around Tange’s aero tubeset and made the initial aero frames that other brands sold under their own names.

By James Hickman, former USA Cycling Expert-level coach and Masters-category racer

This week’s Japanese Bicycle of the Week is a 1982 Tsunoda Aerodynamics, a 56cm road bike in metallic ice blue built on Tange’s oval aero tubing and dressed in Shimano’s 600 AX group. Most collectors know the aero era through Shimano’s components. This bike is a chance to look at the company that actually built the frames. Amazon Affiliate: I earn from qualified purchases.

SPECIAL THANKS TO ALBERT W. ON BUYCYCLE FOR THE IMAGES CONTAINED IN THIS ARTICLE!

Who Was Tsunoda?

Tsunoda was a Nagoya manufacturer whose roots, according to historian Peter Kohler, go back to 1905. By the 1970s it was one of Japan’s largest contract bicycle builders, producing frames that other companies sold under their own badges. That low profile is why the name is unfamiliar to many riders who have owned a Tsunoda-built bike without knowing it.

The best-known of those bikes carried the Lotus name. Around 1980, Ernst Star joined his father Sid’s import business, created the Lotus brand, and moved production to Tsunoda. The Stars ran Lotus International from Syosset, New York, and Tsunoda built the bulk of the range, from entry-level models up to full racing machines.

Tsunoda and the Birth of the Aero Frame

When Shimano developed its AX aero components in 1980, Tange created a matching oval-profile chromoly tubeset to go with them. Tsunoda was the first builder to design a frame from that tubing. Kohler reports that Tsunoda built all of the initial aero frames, which were sold under the Tsunoda name and rebranded for SR, Shimano, and others.

These frames were hard to make. The oval tubes would not fit existing jigs, and Tsunoda’s first aero frames were fillet brazed, with only the bottom bracket lugged. Later production models moved to lugged construction, which was faster and more consistent to build.

The Lotus Connection

Lotus turned Tsunoda’s aero work into a showcase. In 1981 the company built three pink aero prototypes for rider Jim Black’s attempt at the Santa Monica to New York transcontinental record. The record did not fall, but the attention was enough to launch the Lotus Super Pro Aero in September 1981, the first aero road bike sold commercially in the United States.  We are an Amazon affiliate and earn from qualified purchases.

The Super Pro Aero used butted Tange aero tubing, a chromed fork, and full Dura-Ace AX. For 1983, Lotus added the Aero Sports, a lugged frame built with Shimano 600 AX. Our featured Tsunoda sits in that same family: Tsunoda-branded rather than Lotus, with the same Tange aero tubing and the 600 AX group.

The AX Technology in Brief

Shimano designed the AX series with help from its own wind tunnel, treating the whole bicycle as one aerodynamic system. The ideas included flattened tubes, brake cables hidden inside the bars, aero-profile brake calipers and levers, a flat water bottle and cage, and Dyna-Drive pedals that lowered the foot closer to the pedal axle.

The problem was weight. To stay stiff, the oval tubes needed thicker walls, and the AX parts were heavy too. Riders felt the extra pounds more than the wind savings, and the bikes picked up the nickname “Aero Slugs.” By mid-1983 the trend had faded, Lotus dropped its aero models, and Shimano ended AX production the following year. The ideas lived on, though, influencing Campagnolo’s C-Record and aero component design ever since.

Still Riding Your Classic? Find Out What Your FTP Should Be.

Answer 7 quick questions and get a personalized training roadmap, whether you’re riding a vintage Tsunoda or a modern race bike. Take the Free FTP Quiz →

This Build: Specifications

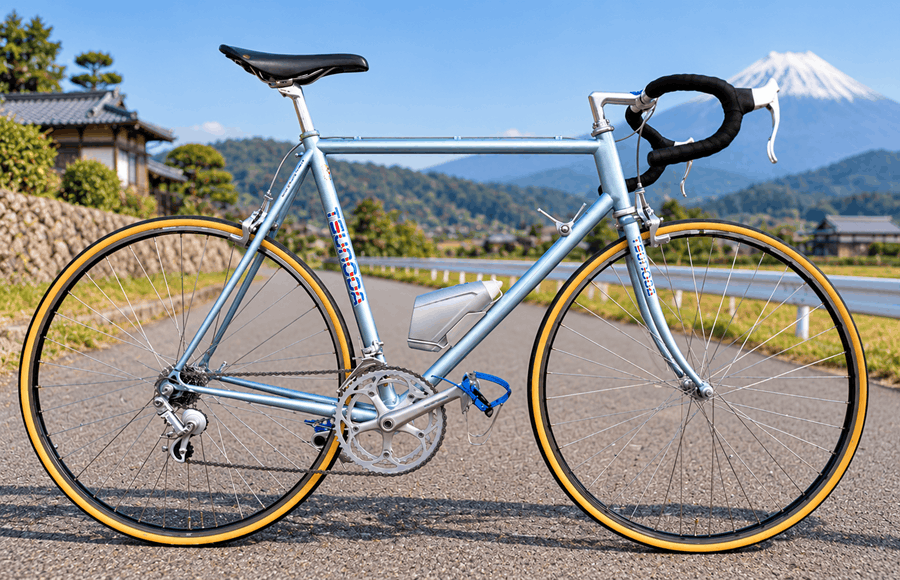

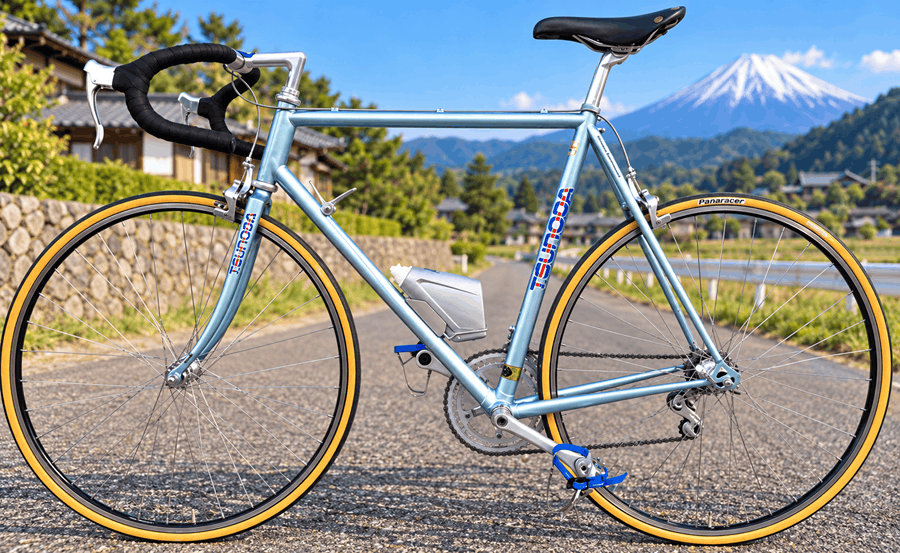

This 56cm example keeps its original Tange Aerodynamics frame in metallic ice blue/turquoise. It has been rebuilt as a tasteful restomod: period character up top, with a few changes for everyday riding.

• Frame: Tange Aerodynamics chromoly, 56cm

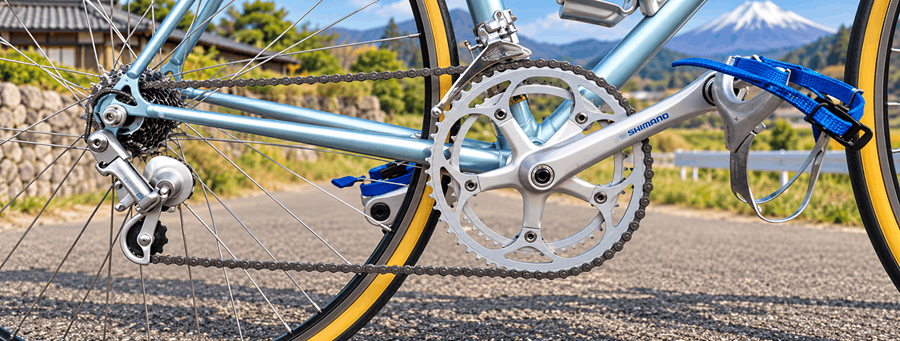

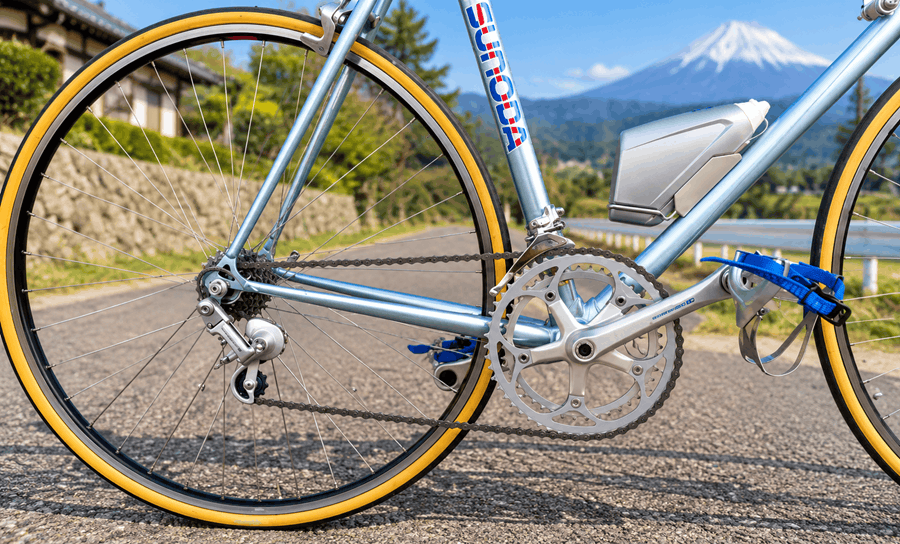

• Groupset: Shimano 600 AX crankset, front and rear derailleurs
• Pedals: Shimano 600 AX with original toe clips and blue straps

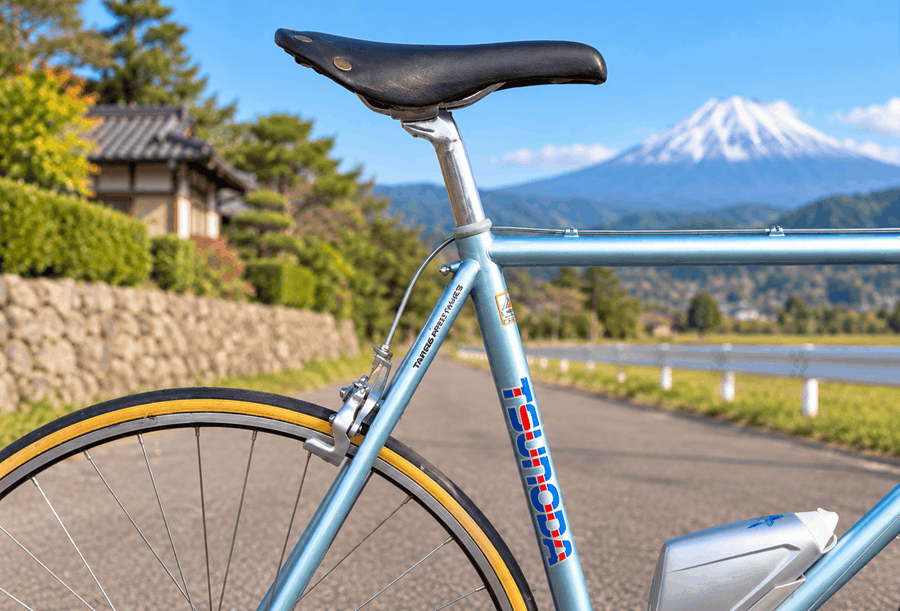

• Saddle: original Tsunoda

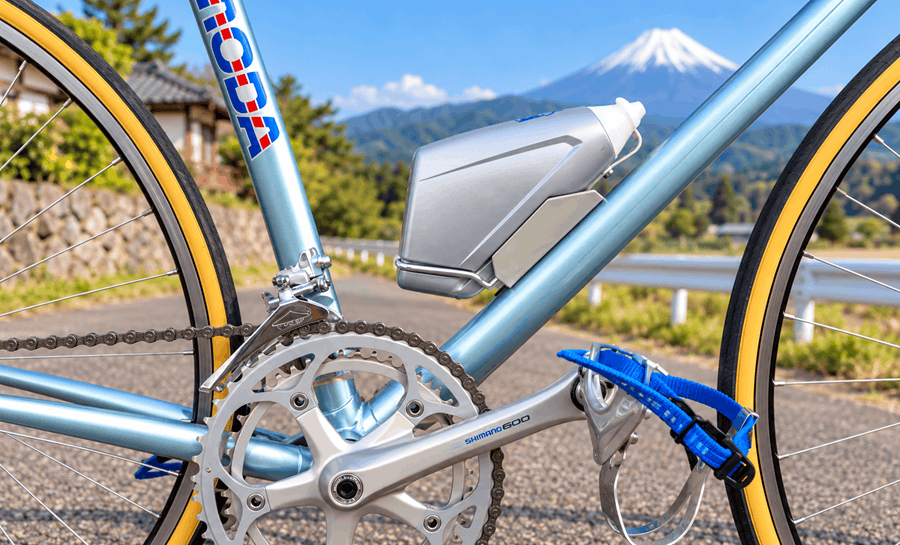

• Accessories: original aero bottle and alloy cage
• Updates: Mavic 7-speed wheelset, new chain, new black bar tape, rebuilt rear derailleur

For comparison, Speedbicycles in Switzerland documents another 1982 Tsunoda Aerodynamics: 57cm, light blue, full 600 AX with a Nitto aero bar and Kashimax Aero saddle, at 10.4 kg. Its frame number is MM02674. Kohler’s Tsunoda-built Lotus Super Pro Aero carries MM04212. Both start with “MM,” a pattern worth checking if you are trying to confirm a Tsunoda-built aero frame. See our Lotus serial number guide for more on dating Tsunoda production.

Collectibility and What to Look For

Aero-era bikes were a commercial flop, so few were made, and complete AX bikes are now harder to find than ordinary Japanese road bikes from the same years. Three things matter most when you inspect one:

• Tube condition. Oval tubes dent more easily side to side than round ones, so check the down tube and top tube closely.
• AX parts. The aero brakes, levers, seat post, and hubs are the hardest pieces to replace. A bike missing them is much harder to return to original.
• Originality vs. rideability. A restomod like this one rides better on modern wheels, but collectors will pay more for a bike with its original AX hubs and aero rims.

For Japanese bike collectors, the Tsunoda Aerodynamics tells two stories at once: Shimano’s bold aero experiment, and the little-known Nagoya builder whose frames made it possible.

Frequently Asked Questions About the Tsunoda Aerodynamics

Who made Tsunoda bicycles?
Tsunoda was a large contract bicycle manufacturer based in Nagoya, Japan. It built frames for other brands, most notably Lotus, the American brand run by Sid and Ernst Star of Syosset, New York, during the 1980s.

Is a Tsunoda the same as a Lotus?
Many Lotus bicycles were built by Tsunoda, so they share a maker. Tsunoda also sold aero frames under its own name, as on this bike, and built aero frames that other companies rebranded.

What is Tange Aerodynamics tubing?
It is an oval-profile chromoly tubeset Tange developed around 1980 to match Shimano’s AX aero components. The flattened tubes reduced wind resistance but needed thicker walls, which made the frames heavier than round-tube bikes.

Why was Shimano AX discontinued?
AX bikes were heavier than conventional racing bikes, some parts were fussy to adjust, and riders noticed the weight more than the aero gains. Sales were poor, the aero trend faded by 1983, and Shimano stopped making AX the following year.
