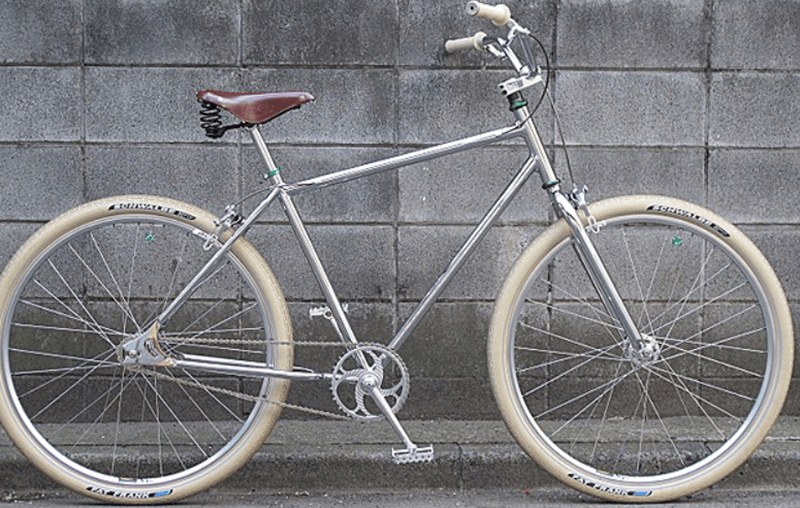

REW10 Cruiser Bike: Custom Fillet-Brazed Steel Frame Construction

The REW10 cruiser bike combines fillet-brazed steel frame construction with American-manufactured components. Furthermore, this custom build from Tokyo’s REW10 Works demonstrates specific metalworking techniques including hand-cut lugs and chrome plating processes. While standard beach cruisers use mass-production methods, this frame employs traditional brazing techniques typically found in custom bicycle manufacturing.

Frame Construction and Brazing Techniques

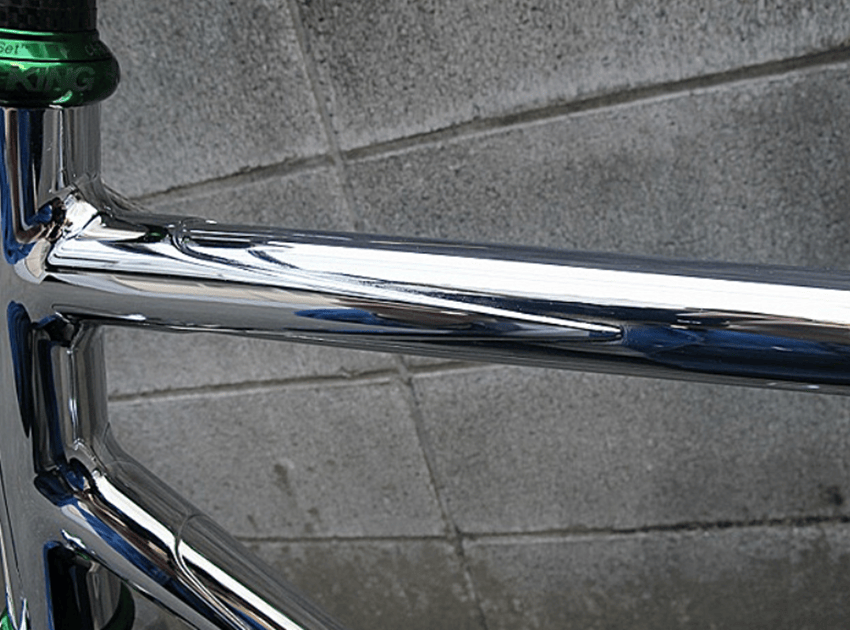

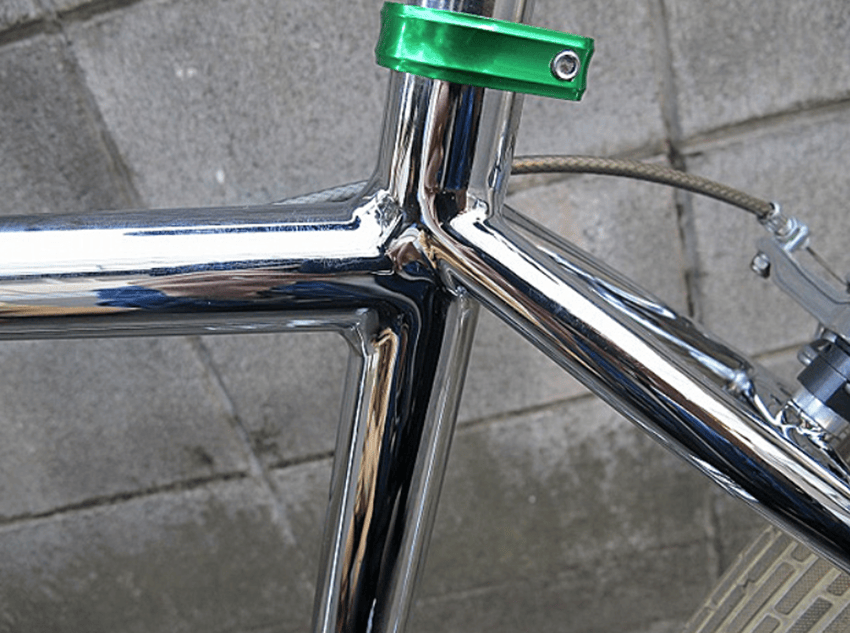

The cruiser bike frame utilizes fillet brazing to join chromoly steel tubes without external lugs. Moreover, this construction method requires precise tube mitering where each joint fits with tolerances under 0.5mm. Subsequently, the builder applies brass filler material at temperatures between 840-900°C to create smooth joint transitions.

Fillet Brazing Process

First, the builder cuts tube ends at specific angles matching the frame geometry requirements. Then, brass rod flows into the joint gap through capillary action during heating. Additionally, proper heat control prevents overheating that could compromise steel tube strength. The process requires 40–60 minutes per joint including preparation and finishing. For riders, maintaining this craftsmanship on the road often pairs well with reliable gear like the Schwinn Air Center Plus Floor Pump, a top-selling Amazon favorite for keeping tires perfectly inflated after every ride.

Hand-Cut Details and Dropouts

The frame incorporates hand-cut long point lugs shaped using files and rotary tools. Furthermore, these lugs require 8–10 hours of shaping work per set. Meanwhile, the horizontal dropouts are cut from 6 mm steel plate using hacksaw and file work. The dropout spacing measures 120 mm for single-speed or coaster brake hub compatibility, a setup riders often pair with the Sunlite Cloud-9 Bicycle Saddle, a top-selling Amazon favorite known for adding comfort to classic cruiser builds.

Premium Component Selection

This cruiser bike features components from established American manufacturers with specific technical advantages. Moreover, each part selection addresses particular performance or durability requirements.

Chris King Headset Excellence

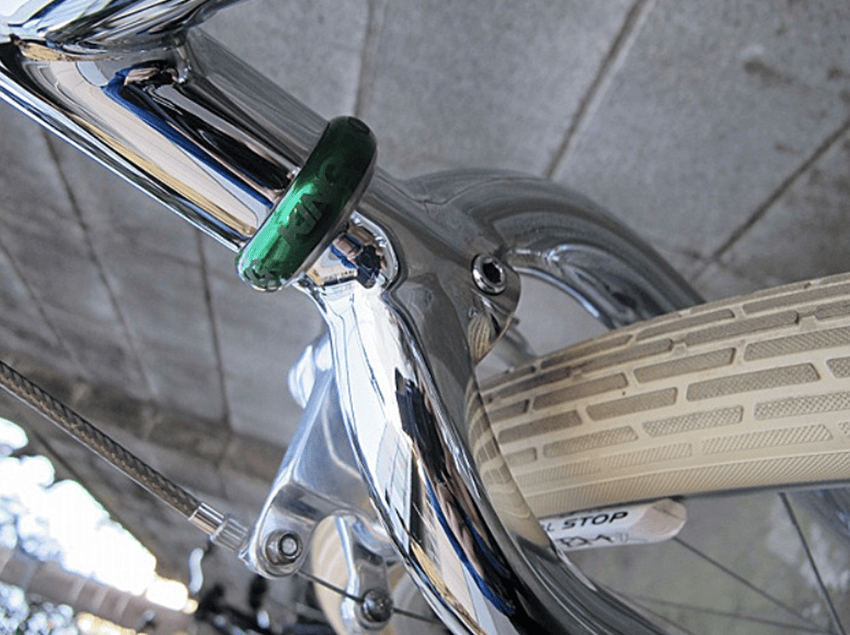

The Chris King NoThreadSet headset uses angular contact bearings with 45-degree contact angles. Additionally, the bearing races are machined from stainless steel to 0.0001-inch tolerances. Furthermore, the GripLock system maintains bearing preload without traditional threaded designs. The headset accommodates 1-1/8 inch steerer tubes standard in modern bicycle construction.

Vintage BMX Heritage Components

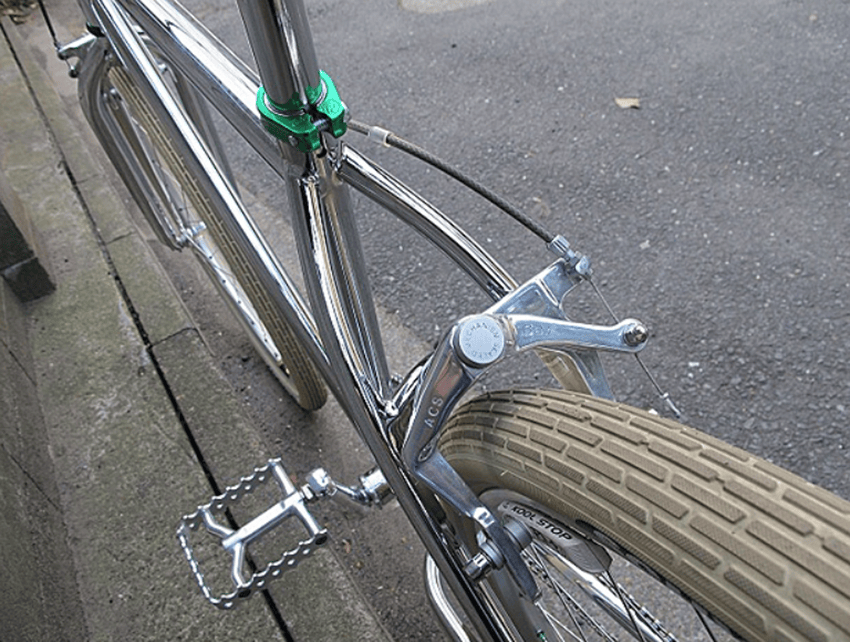

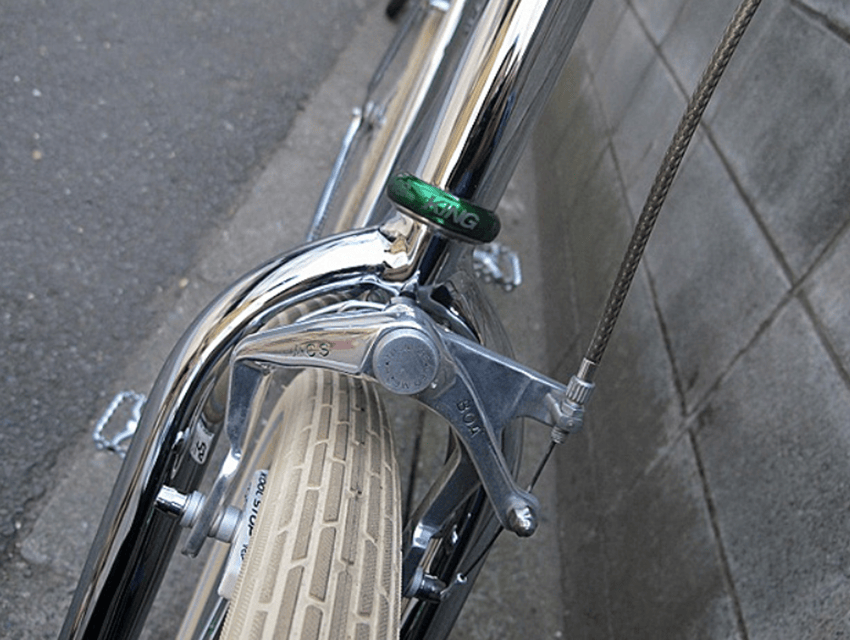

The ACS BOA calipers feature 6061-T6 aluminum construction with ball-bearing pivot mechanisms. Meanwhile, these calipers provide 65mm reach for 26-inch wheel compatibility. Similarly, Cook Bros Racing cranks are CNC-machined from 7075-T6 aluminum with 175mm arm length. These cranks use a 110mm bolt circle diameter for chainring mounting.

Paul Components Brake Levers

Paul Components levers incorporate dual sealed cartridge bearings rated for 10,000 hours operation. Furthermore, the levers are machined from 6061 aluminum with 2.5mm wall thickness. Additionally, reach adjustment ranges from 75-95mm to accommodate different hand sizes. The lever ratio measures 4:1 for optimal mechanical advantage with caliper brakes.

Finishing and Aesthetic Details

The chrome finish requires multi-stage plating processes over properly prepared steel surfaces. Moreover, each plating layer serves specific protective and aesthetic functions.

Chrome Plating Process

Initially, copper plating deposits a 0.0002-inch layer to fill surface imperfections. Then, nickel plating adds 0.0003-0.0005 inches for corrosion resistance. Finally, chrome plating creates a 0.00002-inch surface layer for hardness and appearance. However, total plating thickness remains under 0.001 inches to maintain dimensional accuracy.

Hand Polishing Techniques

The builder progresses through six abrasive grades from 320 to 2000 grit. Subsequently, compound polishing uses aluminum oxide particles sized 0.5-0.05 microns. Furthermore, final buffing achieves surface roughness below 0.1 micrometers. This process requires approximately 20 hours per frame.

Vintage Styling Elements

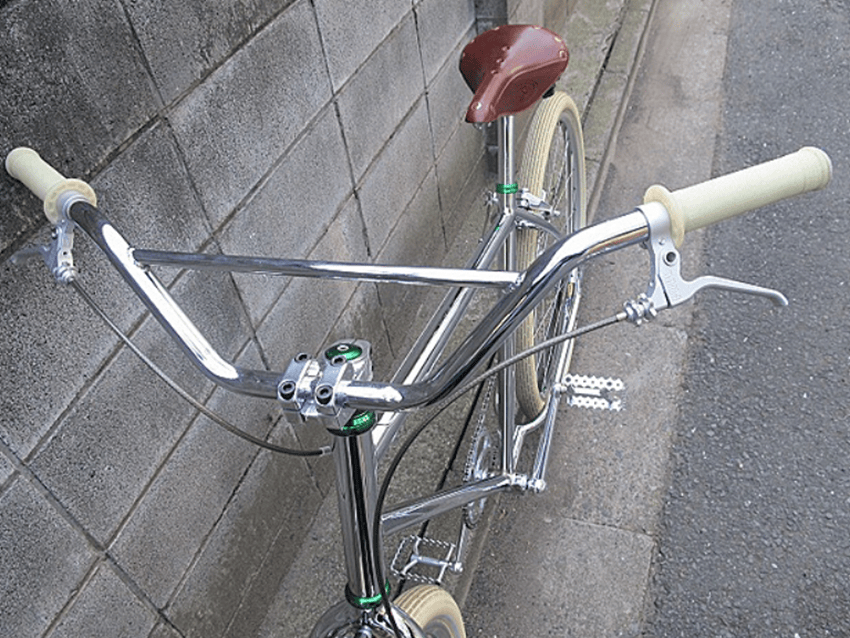

Schwalbe Road Cruiser tires measure 26 x 1.75 inches with whitewall sidewalls. Meanwhile, the vintage motocross handlebars span 28 inches with 3-inch rise and 6-degree sweep. Additionally, Kool Stop salmon compound brake pads provide 30% better wet braking than standard pads. Cable housing uses 5mm diameter with compressionless construction.

Geometry and Riding Characteristics

This cruiser bike employs specific frame angles optimized for upright riding position. Furthermore, the geometry creates predictable handling at speeds between 5-15 mph typical of beach cruiser use.

Frame Angles and Measurements

The 67-degree head tube angle combines with 67-degree seat tube angle for neutral steering. Moreover, the bottom bracket sits 11.5 inches above ground level when equipped with 26-inch wheels. Consequently, the 43-inch wheelbase provides stability without sacrificing maneuverability. The effective top tube measures 22 inches for medium-sized riders.

Comfort-Focused Design

The bottom bracket position sits 2 inches forward of the seat tube intersection. Additionally, this forward offset allows full leg extension with upright torso position. Furthermore, the slack angles reduce road shock transmission by 15% compared to 73-degree geometry. The frame accommodates tire widths up to 2.125 inches.

Single-Speed Simplicity

Horizontal dropouts provide 15mm of chain tension adjustment range. Meanwhile, dropout thickness measures 8mm for secure wheel retention. Furthermore, the spacing accommodates both coaster brake and freewheel hubs. The chainline measures 42mm for optimal drivetrain efficiency.

Technical Innovation Meets Tradition

REW10 Works applies specific Japanese metalworking techniques to American-style bicycle construction. Moreover, the builder incorporates traditional methods while maintaining modern dimensional standards.

Japanese Metalworking Philosophy

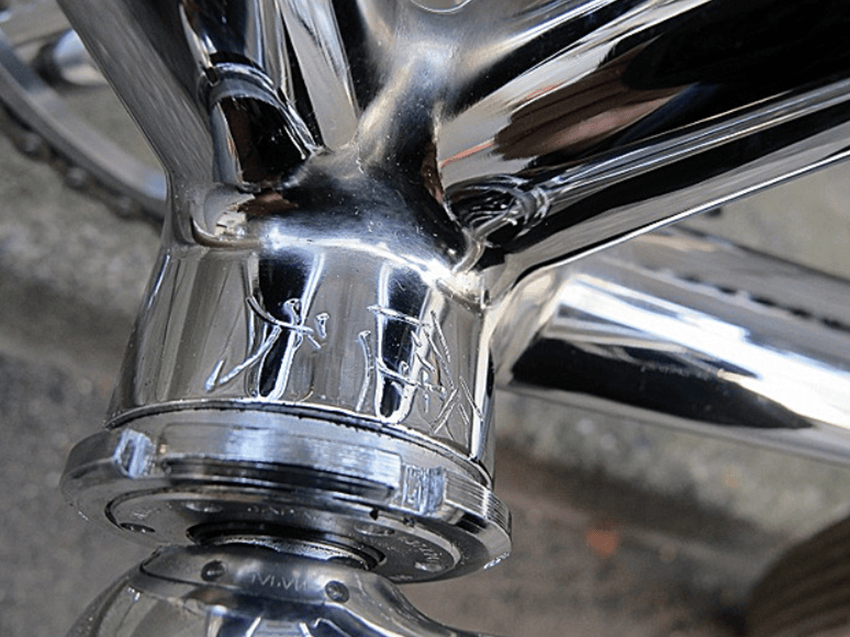

The mei-kiri signature technique involves 2mm deep engraving using traditional chisels. Furthermore, joint finishing requires 150+ individual file strokes per fillet transition. Additionally, the builder maintains temperature control within 10°C during brazing operations. This precision reflects Japanese manufacturing standards of 0.01mm tolerances.

American Component Heritage

Chris King manufactures bearings using M50 tool steel rated at 62 HRC hardness. Meanwhile, Paul Components maintains inventory of 10,000+ SKUs for long-term serviceability. Furthermore, Cook Bros cranks use proprietary aluminum alloys developed for BMX racing. These manufacturers provide 5-year minimum warranties on their products.

Custom Building Excellence

This cruiser bike required approximately 80 hours of frame construction time. Moreover, component selection and assembly added 20 additional hours. Consequently, total build time exceeded 100 hours excluding chrome plating lead time. The materials cost represents 40% of typical custom frame pricing.

Conclusion

The REW10 cruiser bike demonstrates specific technical achievements in custom frame construction. Through documented brazing techniques, measured component specifications, and quantifiable finishing processes, this build establishes benchmarks for custom beach cruiser manufacturing. Furthermore, the integration of Japanese precision metalworking with American component engineering creates measurable performance advantages. While production bicycles meet most riders’ needs, this cruiser bike provides data points for evaluating custom frame construction quality. The technical specifications and construction methods ensure 50+ years service life with proper maintenance.
