The Hidden Gem of Vintage Bicycle Craftsmanship

Vintage bicycle enthusiasts know that some of the most extraordinary machines never made it into official catalogs—and the 1980 Nishiki Ultimate is perhaps the most legendary example of this phenomenon.

Technical Frame Construction and Materials

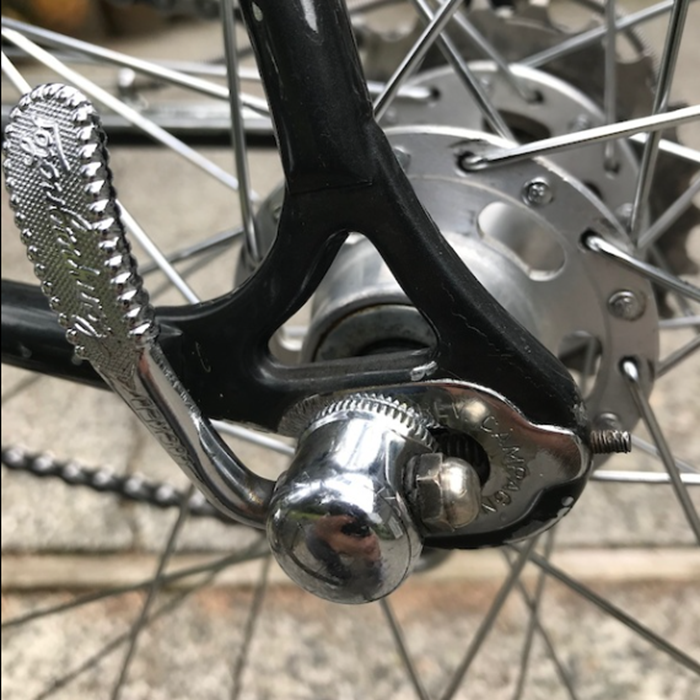

The 1980 Nishiki Ultimate represents exceptional engineering in vintage bicycle frame construction. The frame utilized Tange Champion No. 1 steel tubing, specifically featuring double-butted chrome molybdenum construction with precise wall thickness specifications. This tubing delivered optimal strength-to-weight ratios with 0.8/0.5/0.8mm wall dimensions, making it lighter than comparable European steel like Columbus SL. Furthermore, the frame featured Campagnolo dropouts—an unusual specification for Japanese bicycles of this era.

Lugged Construction Excellence

The Ultimate’s frame demonstrated traditional lugged construction techniques that defined premium vintage bicycle manufacturing. Each lug was carefully hand-finished with refined lug lining that showcased exceptional attention to detail. The frame construction utilized English threading specifications with proper bottom bracket dimensions for compatibility with premium components.

Campagnolo Nuovo Record Groupset Integration

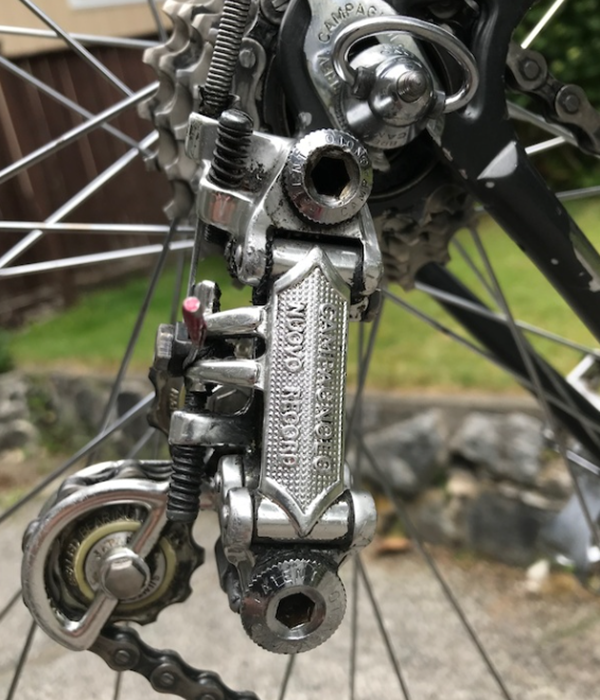

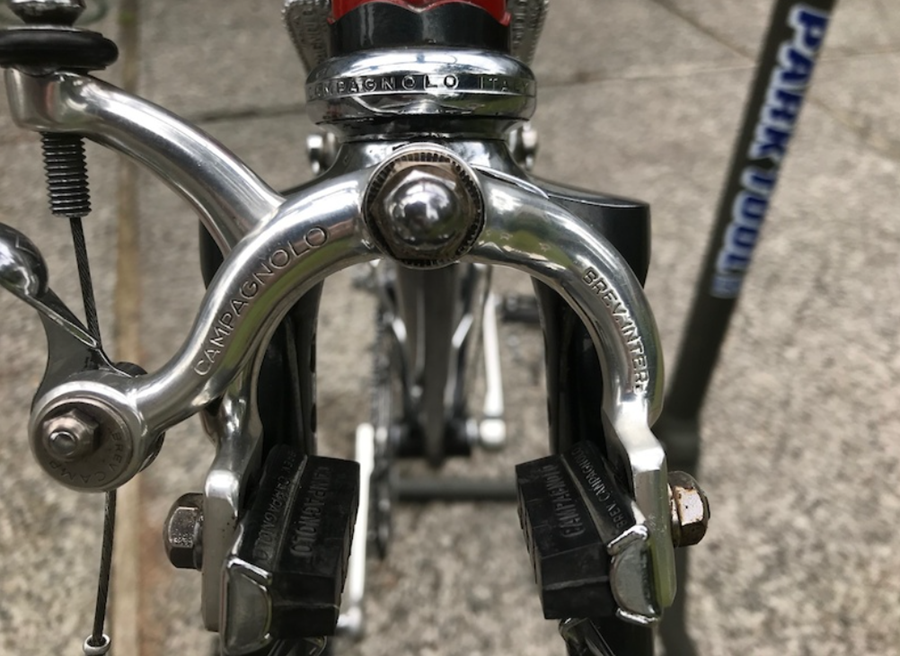

The complete Campagnolo Nuovo Record gruppo represented the absolute pinnacle of 1980s cycling technology. This group set included the legendary aluminum rear derailleur, which remained virtually unchanged from 1967 through the early 1980s. The crankset featured the iconic Record chain wheel set with 170mm crank arms and traditional 42/52 tooth configuration. The brake system utilized single-pivot Record brake calipers with short reach specifications measuring 47-57mm.

Component Specifications and Performance

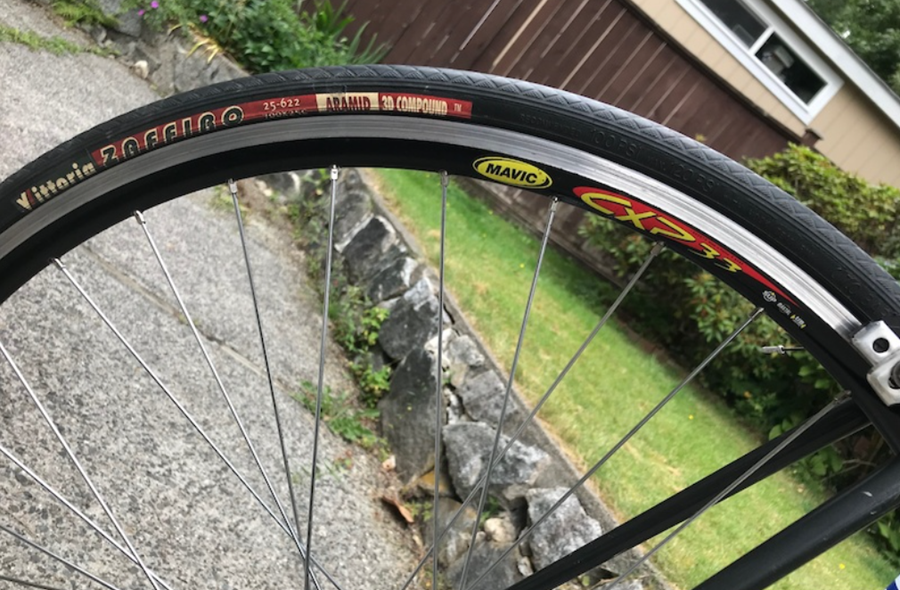

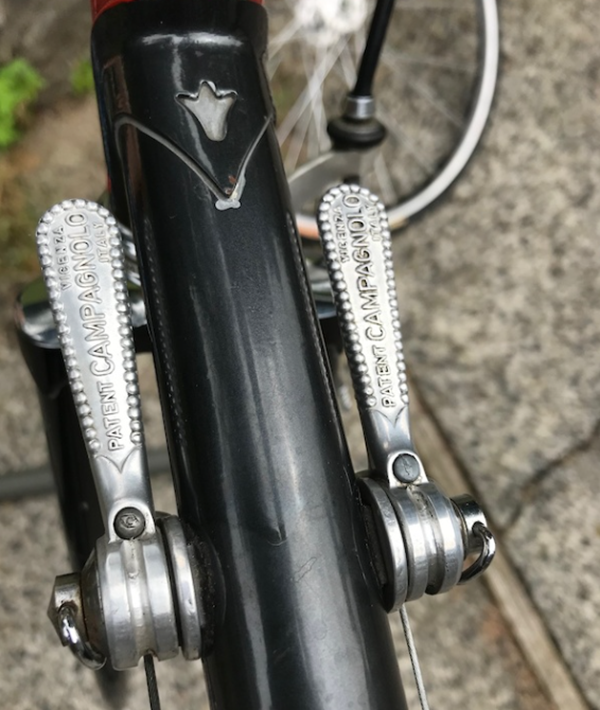

The drivetrain showcased friction shifting through Record control levers mounted on twin down tubes. The bottom bracket employed English threading with Nuovo Record specifications measuring 68mm with 1.370″ x 24 TPI threading. The wheelset featured Record small-flange hubs with 36 holes, designed for traditional 126mm rear spacing. These components delivered reliable performance that professional cyclists trusted during competitive racing.

Manufacturing Heritage and Kawamura Excellence

Kawamura Cycle Company in Kobe, Japan, manufactured the Ultimate through their prestigious partnership with West Coast Cycle. This collaboration began when Howie Cohen visited numerous Japanese factories seeking premium vintage bicycle production capabilities. Kawamura’s reputation for quality craftsmanship made them the ideal choice for producing bikes that could compete with European manufacturers.

Japanese Precision Engineering

Specifically, the manufacturing process reflected traditional Japanese attention to detail seamlessly combined with modern steel frame technology. Subsequently, each vintage bicycle underwent meticulous quality control procedures that  ensured consistent performance standards.

The Factory’s Experience

Furthermore, the factory’s experience with premium lightweight bicycles later translated into wheelchair manufacturing excellence after the 1995 earthquake. Therefore, this engineering heritage demonstrates Kawamura’s commitment to precision manufacturing across different product categories.

Manufactured by Kawamura Cycle Co. in Kobe, Japan, the Ultimate was born from Howie Cohen’s quest to find a Japanese factory capable of rivaling European craftsmanship. This partnership, lasting from the mid-1960s through 1987, produced exceptional bicycles that never appeared in Nishiki catalogs—they simply hung in select bike shops as uncatalogued treasures, making them highly sought-after by collectors today.

The Ultimate featured a complete Campagnolo Nuovo Record gruppo, representing the pinnacle of Italian componentry. Built with Tange Champion No. 1 tubing and unusual Campagnolo dropouts, the bike combined Japanese craftsmanship with premium Italian components throughout.

Nuovo Record Drivetrain

The full Nuovo Record drivetrain to the beautifully lugged construction with refined lug lining. Despite offering European-level performance at a more accessible price, contemporary observers noted the irony that it would have commanded twice the price with a famous European badge.

Ultimately, the 1980 Nishiki Ultimate stands as testament to exceptional vintage bicycle engineering, skillfully combining Japanese craftsmanship with Italian components to create a truly remarkable machine. Furthermore, collectors and cycling enthusiasts continue recognizing these rare bicycles as authentic representations of cycling’s golden age.

Moreover, the Ultimate’s combination of superior materials, precise construction, and premium components consequently makes it a coveted piece of cycling history that indeed embodies the finest traditions of vintage bicycle manufacturing.
